Android POE Tablet 10.1 Inch Smart Home Control Panel with MQTT,LED Lights, Google Play,Wifi,Bt,Rj45

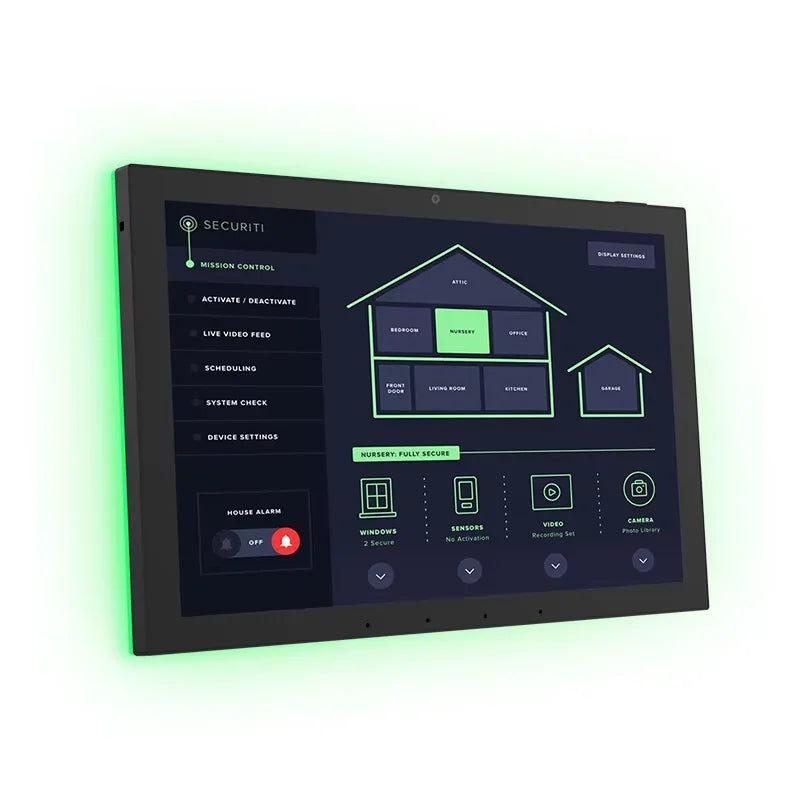

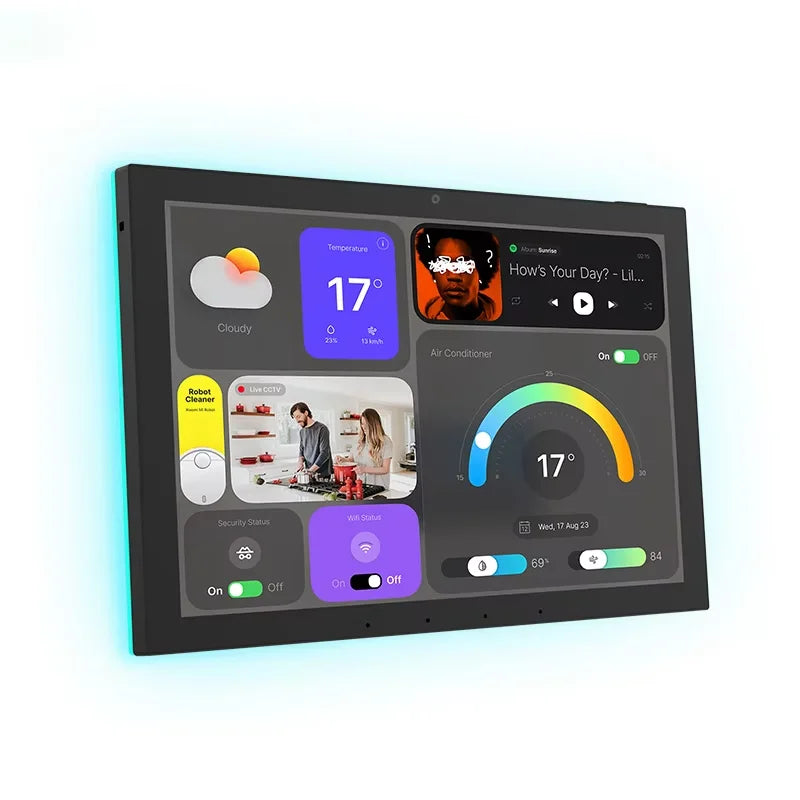

Android POE Tablet 10.1 Inch Smart Home Control Panel with MQTT,LED Lights, Google Play,Wifi,Bt,Rj45 is a wall-mounted smart home control tablet designed to combine touch control, multimedia, connectivity, audio, Internet access, and LED ambient lighting in one interface. It features a 10.1-inch capacitive touchscreen, RK3576S 8-core processor, 4GB RAM, 64GB ROM, Wi-Fi 6, Ethernet, Bluetooth 5.3, PoE support, temperature and humidity sensing, and multiple smart home interfaces.

Specifications

• Type: Embedded Computer

• Display Size: 10.1 inch

• Display Resolution: 1280 × 800P

• Touch Panel: 10-point capacitive touch

• Screen Brightness: 250 Cd/㎡

• Operating System: Android 14

• Processor: RK3576S 8-core

• Memory: 4GB RAM + 64GB ROM

• Network: Wi-Fi 6, Bluetooth 5.3, Ethernet

• Ethernet: 100/1000M

• Power Supply: RJ45 PoE or direct DC input

• Battery Included: No

• Speaker: 2 × 2W

• Camera: 5.0MP front camera

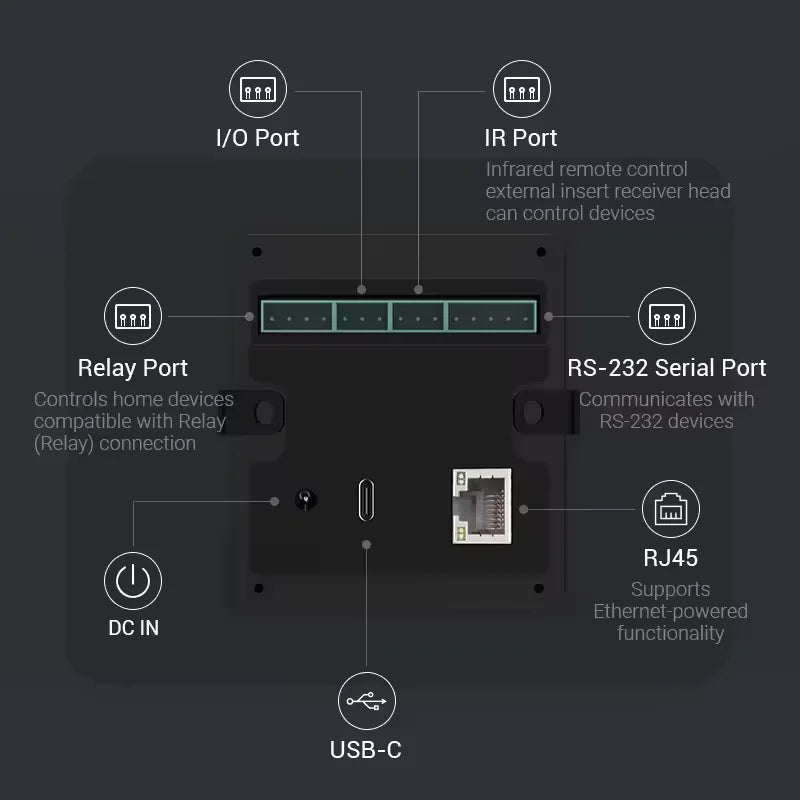

• Interfaces: USB, I/C Port, I/R Port, Relay Port, RS-232 Serial Port, DC IN, RJ45

• Supported Protocols: I/O, IR, RS232, RS485

• LED Lighting: 4 built-in LED light bars

• Sensors: Temperature and humidity sensor

Features

• Wall-mounted Android multimedia tablet designed for smart home control applications.

• Combines touchscreen control, computing, multimedia, audio, Internet access, and LED ambient lighting.

• Built-in Google Play Store supports downloading compatible smart home applications.

• Supports Home Assistant, Tuya, Smart Life, Smart Things, and other compatible applications.

• Supports Wi-Fi 6, Bluetooth 5.3, Ethernet, and RJ45 PoE connectivity.

• Built-in temperature and humidity sensor for smart home integration.

• LED ambient lighting and temperature and humidity sensors can be integrated through MQTT.

• Relay port supports compatible home devices that use relay connections.

• Screen supports horizontal or vertical display modes.

• Four built-in LED light bars can be turned on or off and adjusted to different colors.

• Supports screen auto-rotation and configurable rotation degree settings.

• Supports configurable screen timeout and sleep mode settings.

Applications

• Smart home control centers

• Smart building management

• Smart hotel management

• Unattended vending machine control applications

Available Colors

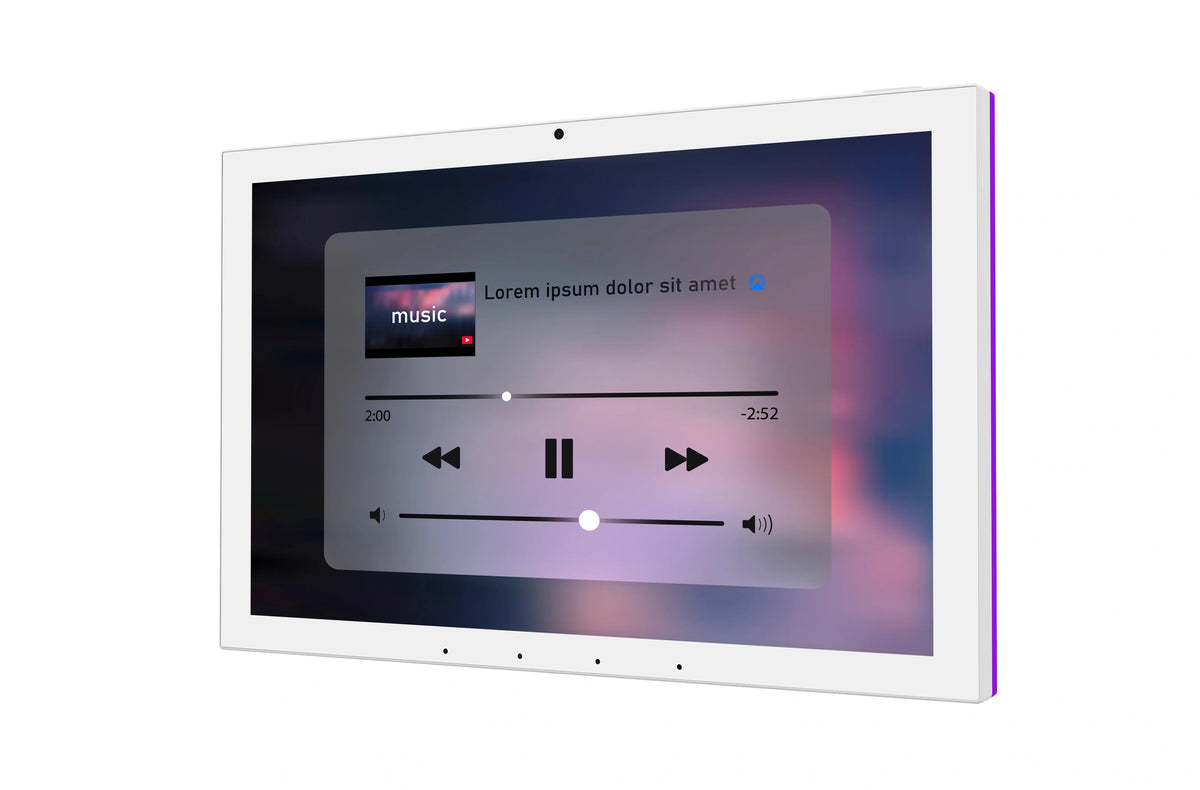

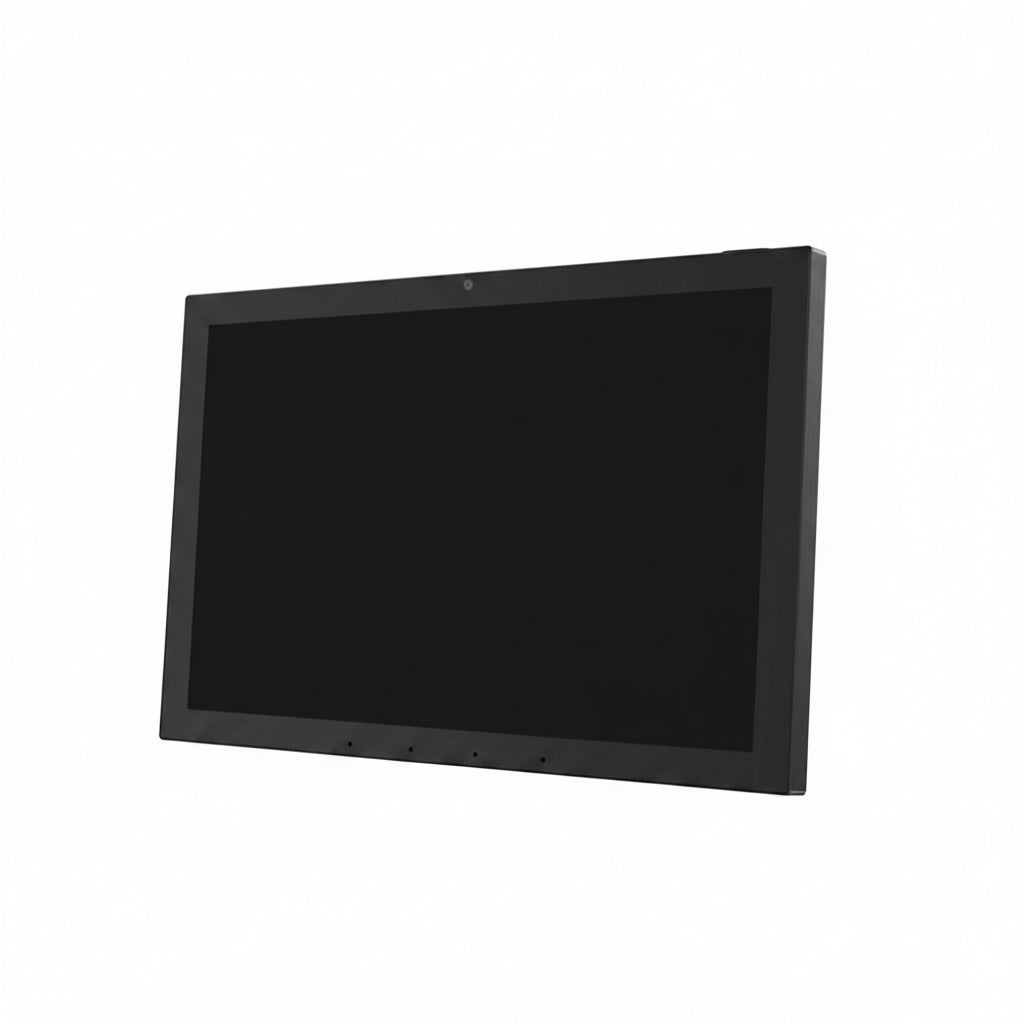

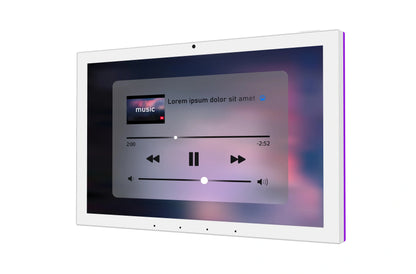

• Black

• White

Installation

• Designed for wall-mounted installation.

• Wall mount plate is included in the package.

Software & Integration

• Built-in Google Play Store supports compatible Android applications.

• Home Assistant can be downloaded and run through the built-in Google Play Store.

• MQTT support is provided for compatible LED lighting and sensor integration.

• SDK, demo files, API documentation, and development documents are available for supported software development.
