Smart WiFi Raspberry Pi Robot Car Kit with 4DOF Robotic Arm & HD Camera

Smart WiFi Raspberry Pi Robot Car Kit with 4DOF Robotic Arm & HD Camera is an open-source programmable robot kit built on a tracked aluminum alloy tank chassis. It features a 4DOF robotic arm, 2-DOF 720P camera, ultrasonic and infrared sensors, WiFi/Bluetooth control, and support for Python, C, and Scratch programming. Designed for educational projects, robotics training, programming education, and electronics learning, the robot can be controlled using compatible iOS/Android mobile devices, tablets, or a PC. It is compatible with Raspberry Pi 3B/3B+/4B/5; Raspberry Pi is not included and must be provided separately.

Specifications

• Product Type: Smart WiFi programmable robot car kit

• Toy Figure Type: Miniature Figure

• Character: Robot

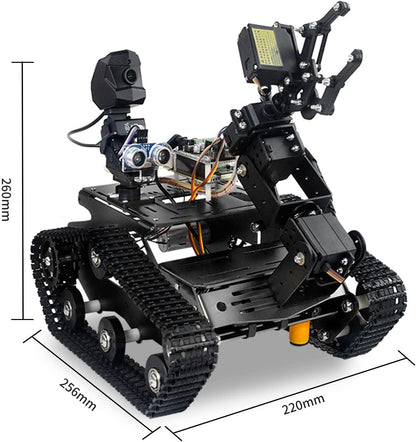

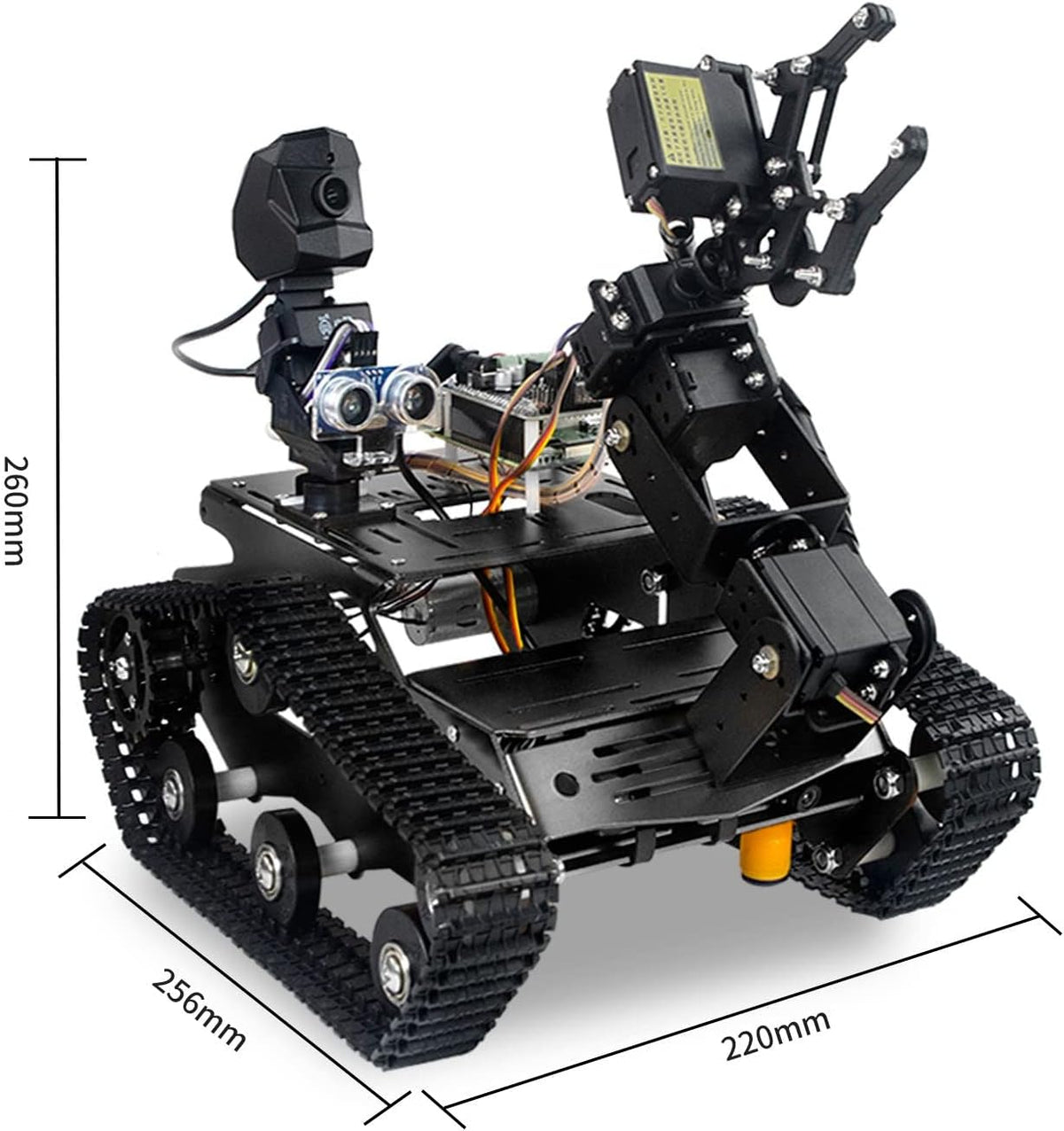

• Size: 300*230*233mm

• Item Dimensions: 8.7 x 10 x 10 inches

• Weight: 3.2KG

• Core Motherboard: Raspberry Pi

• Raspberry Pi Compatibility: Raspberry Pi 3B/3B+/4B/5

• Material: Aluminum alloy

• Outer Material: Aluminum

• Inner Material: Electronic Components, Plastic, Metal, Silicon

• Finish Type: Matte

• Color: Black

• Servo: XRSG90, ≥0.33kgf.cm at4.8V 180°, anti-lock protection

• Power Supply: 12V / 2200mAh

• Power Source: Battery

• Battery: 1 Lithium Ion battery required (included)

• Camera: 720P

• Dynamic Video Resolution: Up to 1280*720P

• Frame Rate: Up to 100F/s

• Camera Rotation: 180° L&R, 180° U&D

• Robotic Arm: 4DOF with 180° rotation

• Motor: 630±12%rpm

• Programming: Python, C, Scratch

• USB Interface: 2 USB 3.0 ports; 2 USB 2.0 ports

• Operation Mode: Manual

• Number of Players: 1

• Number of Pieces: 1

• Number of Packs: 1

• Scale: Miniature

• Size: 10 inches

• Theme: Robot

• Style: Modern

• Play Activity Location: Floor

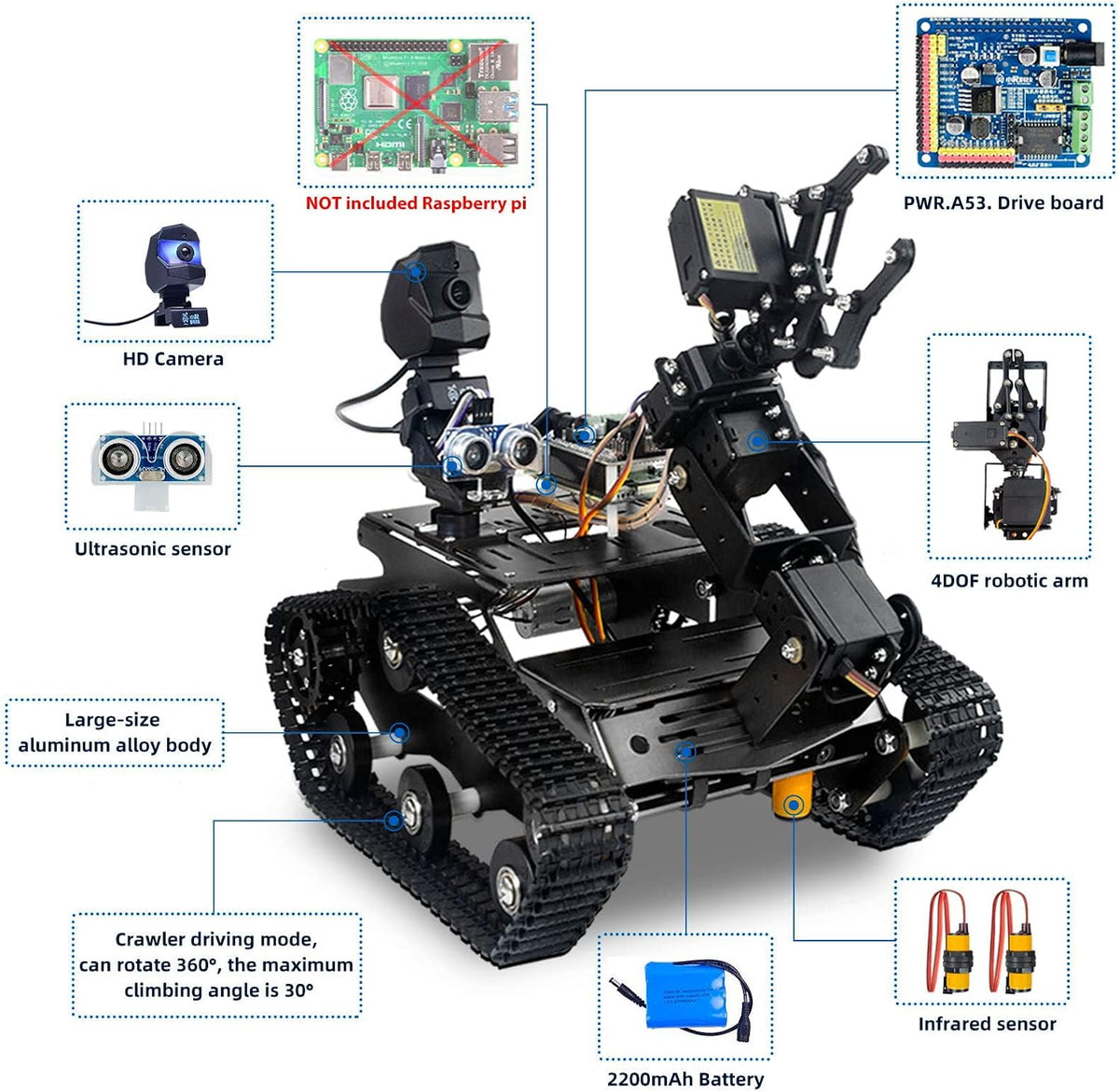

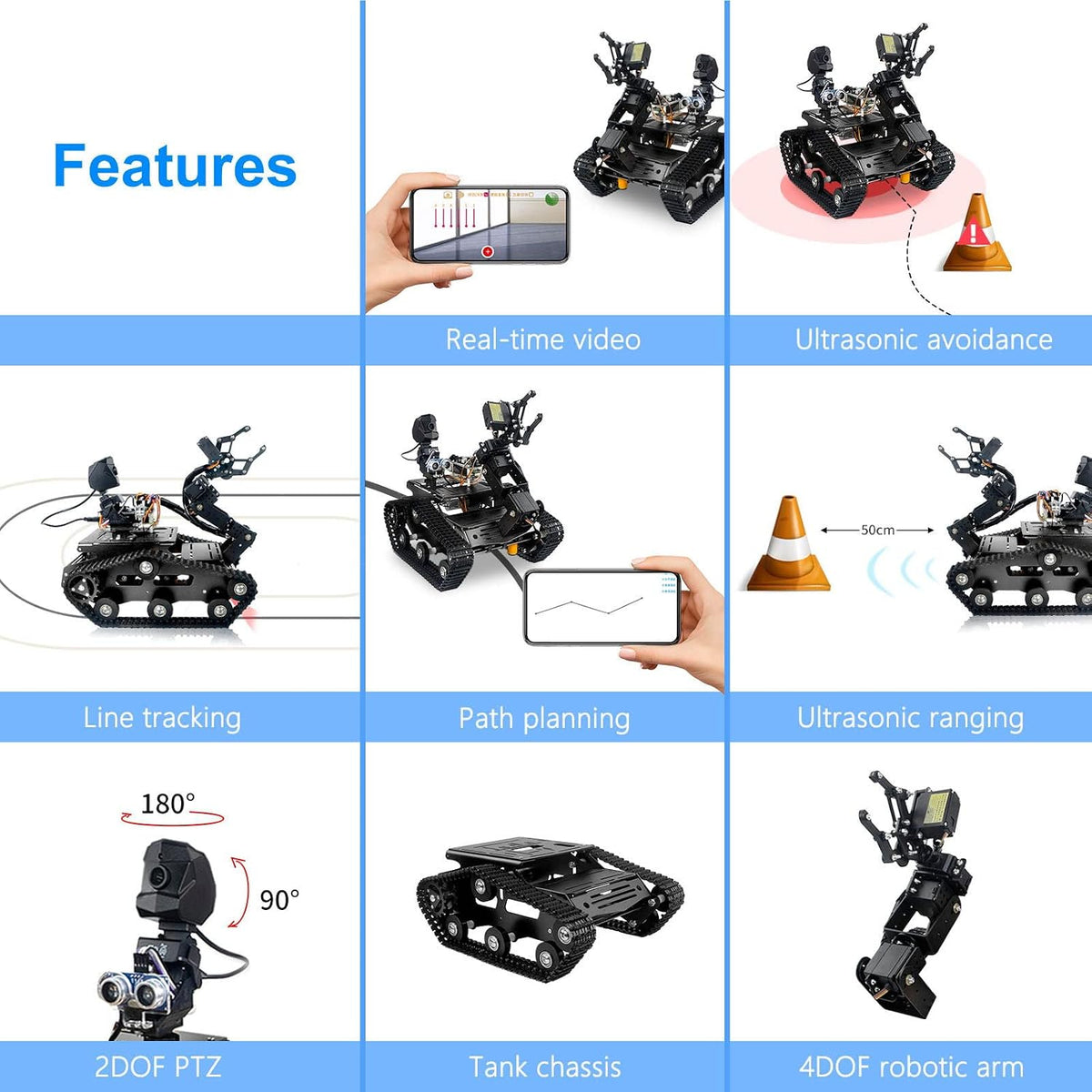

Features

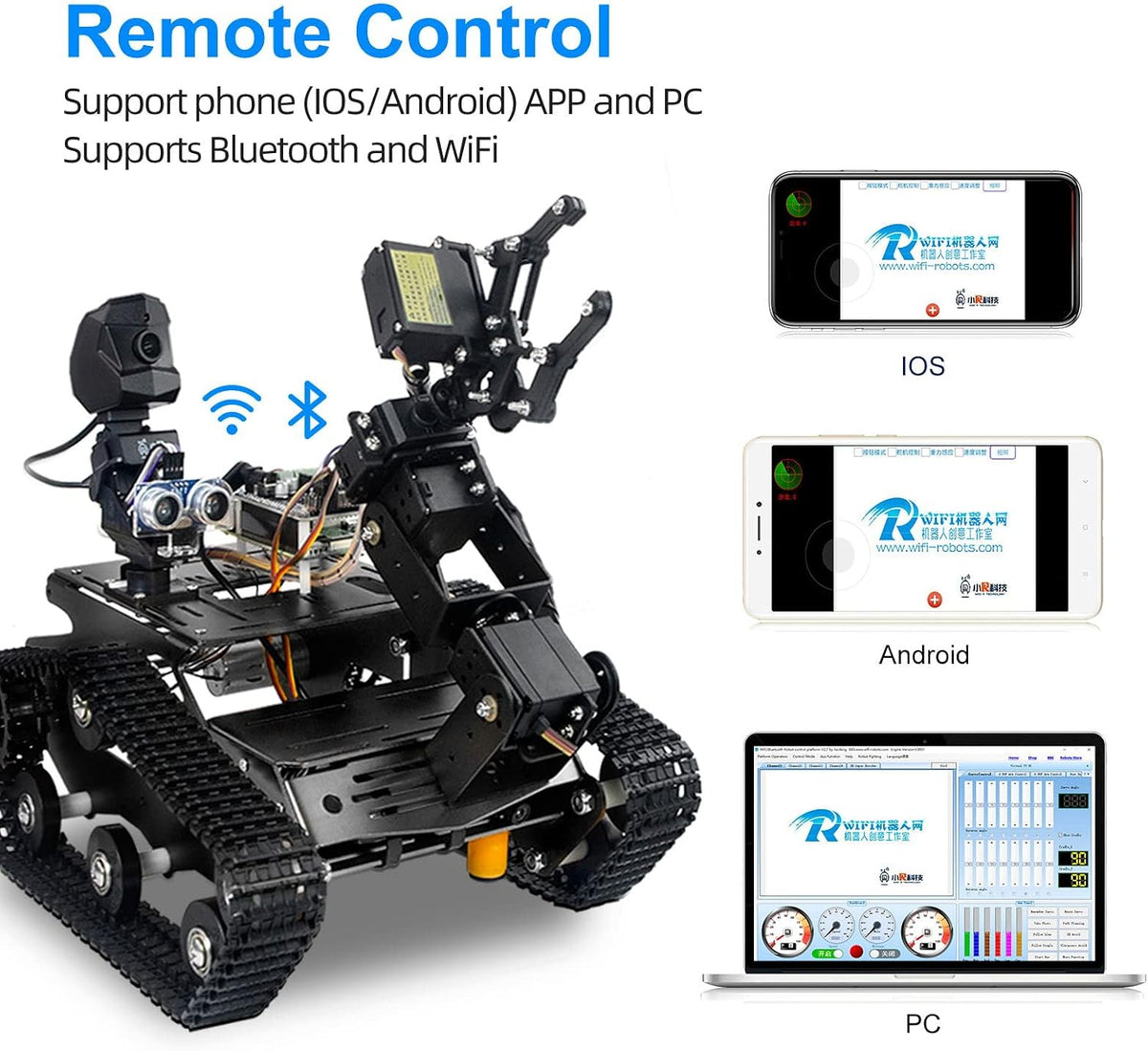

• WiFi/Bluetooth Control: Supports compatible smartphone and tablet apps for iOS/Android as well as PC control.

• Tracked Tank Chassis: Large tracked chassis constructed from high-strength aluminum alloy for durable operation and 360° rotation.

• 4DOF Robotic Arm: Features a 180° range of rotation with app-controlled grasping movements.

• 2-DOF PTZ Camera: The 720P camera supports real-time video transmission, manually adjustable focal length, and 180° movement up and down and left and right.

• Ultrasonic Sensor: Supports obstacle avoidance and ranging feedback functions.

• Infrared Sensor Module: Supports functions including obstacle avoidance, object following, and line finding.

• Open-Source Programming: Supports secondary development and programming with Python, C, and Scratch.

• Educational Use: Designed for educational projects, robotics training, programming education, electronics learning, and STEM skill development.

• Remote Control: Supports remote operation through compatible mobile devices, tablets, and PC.

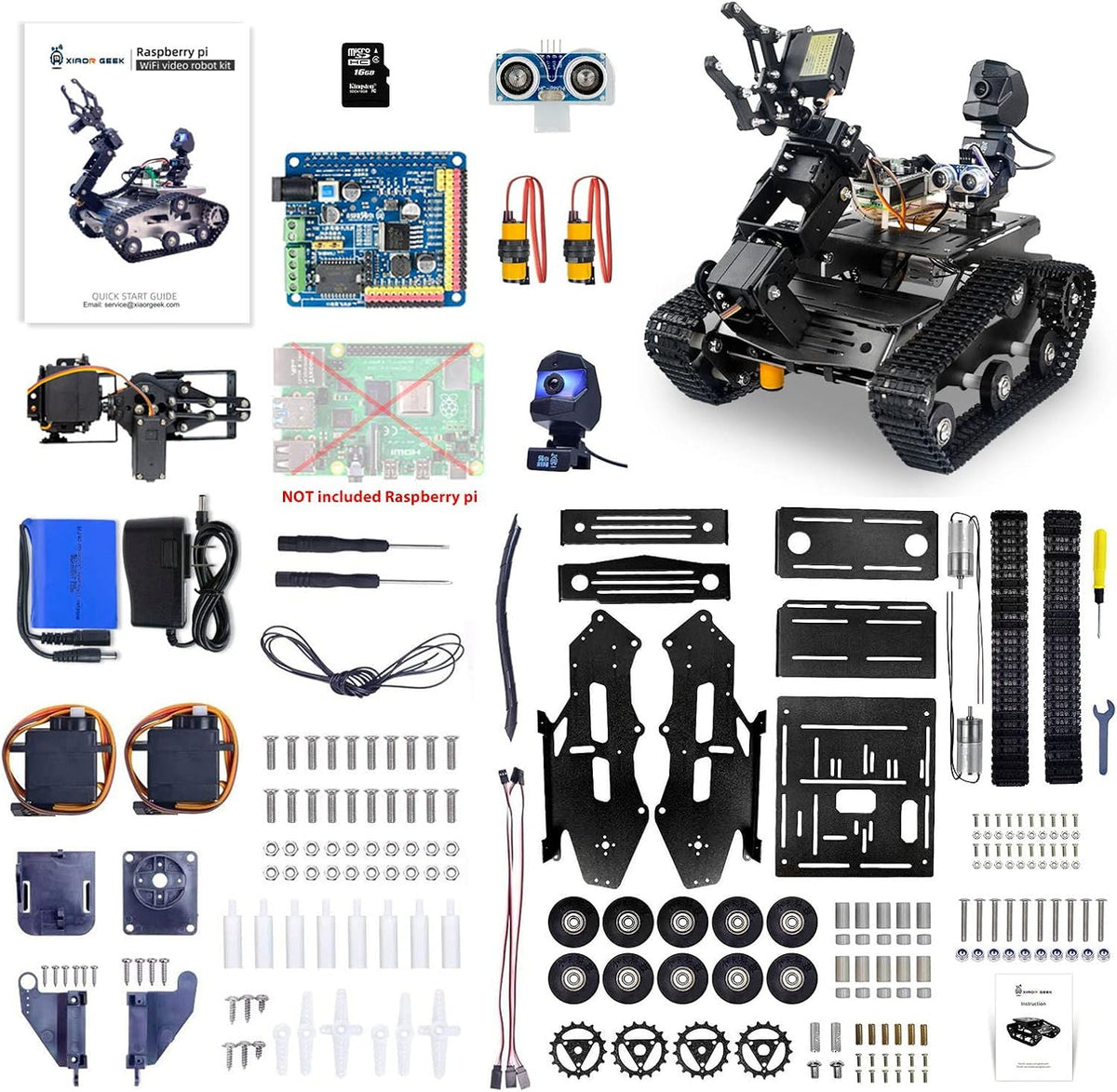

Package Contents

• TF Card: 1 included

• Battery Pack: 1 included

• Raspberry Pi: Not included; a compatible Raspberry Pi 3B/3B+/4B/5 must be provided separately.

```
